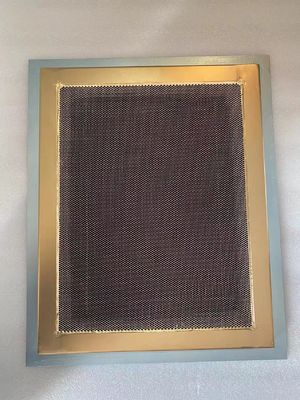

Air Ventilation And EMI Shielding rf cage ventilation technology ensuring shielding electromagnetic wave containment in secure communication hubs

Product Description:

The Honeycomb Waveguide Air Vents are specifically engineered to provide exceptional airflow while maintaining superior electromagnetic shielding, making them an ideal solution for sensitive environments such as MRI rooms. Designed to effectively manage ventilation without compromising the integrity of the shielding, these vents ensure that air circulates freely while protecting against electromagnetic interference (EMI) across a broad frequency range. This makes the Honeycomb Waveguide Air Vents an indispensable component in MRI room shielding applications.

One of the standout features of this product is its high air flow capability. The honeycomb structure within the waveguide window is meticulously designed to maximize ventilation efficiency, allowing air to pass through with minimal resistance. This ensures optimal temperature regulation and air quality within the MRI room, which is critical for maintaining the performance and safety of sensitive medical equipment. Unlike conventional vents, the waveguide window design prevents electromagnetic waves from penetrating the room, preserving the integrity of the MRI environment.

The product offers versatile mounting options to suit different installation requirements. Customers can choose from three distinct frame types: L Type, Z Type, or a frame-less option. The L Type frame provides a robust and easy-to-install solution for standard wall or panel mounting. The Z Type frame is designed for applications requiring a flush finish, offering a sleek and unobtrusive appearance while maintaining structural integrity. For installations where frame space is limited or a minimalist look is desired, the option without a frame is available, allowing the honeycomb waveguide air vent to be integrated seamlessly into existing structures.

In terms of shielding performance, the Honeycomb Waveguide Air Vents excel by meeting stringent standards for electromagnetic shielding effectiveness. The vents provide a remarkable shielding effectiveness of up to 100 dB across a wide frequency range from 14 KHz to 40 GHz. This level of attenuation ensures that the MRI room remains protected from external electromagnetic interference, which could otherwise affect the accuracy and reliability of MRI scans. The honeycomb waveguide design is critical in achieving this balance between high airflow and superior shielding, making it a trusted choice for medical facility engineers and architects.

Durability and reliability are also key attributes of the Honeycomb Waveguide Air Vents. Built from high-quality materials with precise manufacturing standards, these vents are designed to withstand the rigors of continuous operation in demanding medical environments.

In summary, the Honeycomb Waveguide Air Vents combine advanced waveguide window technology with high airflow capacity and superior shielding effectiveness, making them the ideal solution for MRI room honeycomb ventilation needs. Their versatile frame options, exceptional shielding performance from 14 KHz to 40 GHz with up to 100 dB attenuation, and robust 3-year warranty ensure that they meet the rigorous demands of MRI room shielding. Whether you require an L Type, Z Type, or frame-less installation, these vents provide a reliable and efficient means to maintain a controlled, interference-free environment while ensuring adequate air circulation. For medical facilities aiming to optimize their MRI rooms, the Honeycomb Waveguide Air Vents represent a perfect blend of innovation, functionality, and durability.

Features:

• Product Name: Honeycomb Waveguide Air Vents
• High air flow for efficient rf cage ventilation
• Functions as both air ventilation and EMI shielding solution
• EMI shielding effectiveness up to 60 dB
• Durable construction for long-lasting performance
• Shielding effectiveness from 14KHz to 40GHz meets 100dB standard
• Designed as a honeycomb vent to optimize ventilation and shielding
• Ideal ventilation window for maintaining airflow while blocking EMI

Technical Parameters:

Applications:

The Jovi Honeycomb Waveguide Air Vents, model number 1-CF-4, are designed to provide exceptional electromagnetic wave shielding while allowing efficient airflow in various electronic and communication device applications. Manufactured in China and certified with CE, these vents combine high shielding effectiveness, ranging from 14KHz to 40GHz with a performance meeting 100dB, ensuring reliable protection against electromagnetic interference (EMI).

Featuring a unique honeycomb core structure, the vents enable optimal air passage while maintaining robust shielding capabilities. The honeycomb core design minimizes airflow resistance and noise, making it ideal for use in sensitive electronics enclosures where maintaining temperature control and avoiding EMI is critical. Customers can select from different frame options including L Type, Z Type, or opt for a honeycomb window with frame or without frame, depending on installation requirements.

These honeycomb waveguide air vents are especially suitable for electronics enclosures and communication devices that require efficient ventilation without compromising electromagnetic shielding. The transfer functions available include All Pass and Low Pass, providing versatile solutions for different frequency filtering needs. Whether deployed in data centers, telecommunication hubs, or industrial electronic cabinets, the vents ensure equipment stability and longevity by preventing overheating and EMI-related disruptions.

Their robust design, flexible frame options, and proven shielding effectiveness make them an excellent choice for protecting sensitive electronics and communication devices in diverse industrial and commercial environments.

Packing and Shipping:

Product Packaging: The Honeycomb Waveguide Air Vents are carefully packaged to ensure protection during transit. Each unit is individually wrapped in anti-static foam and sealed in a clear plastic bag to prevent dust and moisture exposure. Multiple units are then placed in a sturdy corrugated cardboard box with internal dividers to avoid movement and damage. The exterior of the box is labeled with product details, handling instructions, and barcode for easy identification.

Shipping: The packaged Honeycomb Waveguide Air Vents are shipped using reliable courier services with tracking options available. We offer multiple shipping methods including standard, expedited, and freight shipping to accommodate different order sizes and delivery requirements. All shipments are handled with care, and insurance options are available to protect against loss or damage. Estimated delivery times vary based on destination and selected shipping method.

FAQ:

Q1: What is the brand and model number of the Honeycomb Waveguide Air Vents?

A1: The Honeycomb Waveguide Air Vents are manufactured by the brand Jovi, and the model number is 1-CF-4.

Q2: Where are the Honeycomb Waveguide Air Vents made?

A2: These air vents are made in China.

Q3: What certifications do the Honeycomb Waveguide Air Vents have?

A3: The product is CE certified, ensuring compliance with European safety and quality standards.

Q4: What is the minimum order quantity and pricing for the Honeycomb Waveguide Air Vents?

A4: The minimum order quantity is 1 piece. The price ranges from $130 to $380 per piece, depending on specifications and order size.

Q5: How are the Honeycomb Waveguide Air Vents packaged and what is the delivery time?

A5: The vents are packaged in wooden cases or customized packaging as per customer requirements. The delivery time is typically 5-8 work days.
